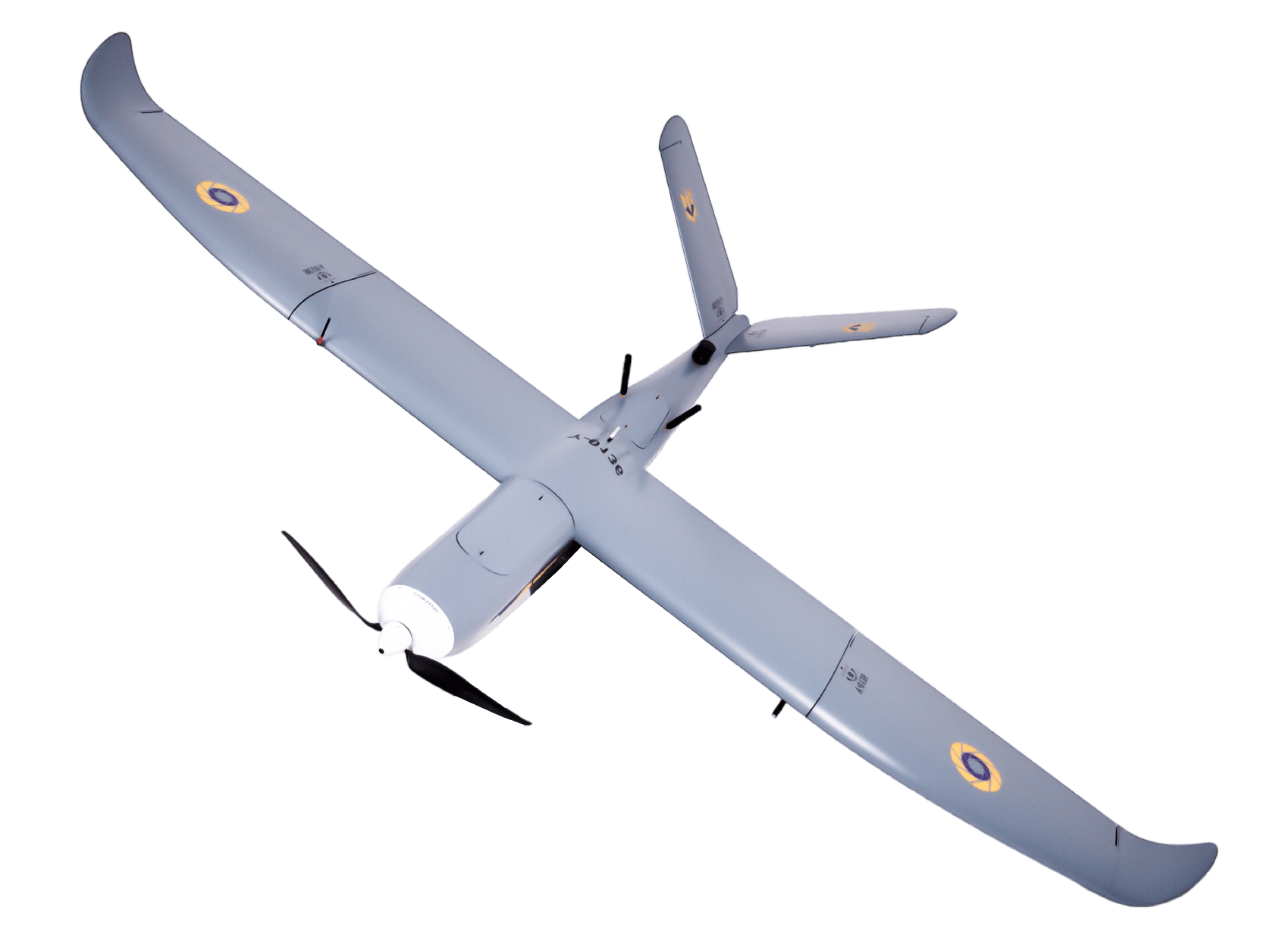

GOR - unmanned aerial system is a ready-made solution for performing reconnaissance and surveillance tasks. The complex is equipped with a camera with a thermal imager and encrypted communication. Flight range 130 km flight time 2.5 h.

Modular
airframe
design

GOR UAS has a modular design, all airframe parts. the glider design consists of 6 parts, the assembly of the glider takes 30 seconds. Deployment of the complex in 10 minutes.

CAMERA WITH
RETRACT
MECHANISM

Resolution: 1280 x 720
Zoom : x40 + x2 digital, (total x80)
Resolution: 1920 x 1080
Zoom : x27 + x2 digital, (total x54)

LWIR uncooled 8-14 nm

Resolution : 1280 x 720
Zoom : x8 digital, continuous zoom
HFOV : 17.5° W.FOV - 2.2°

NEXTVISION
RAPTOR

3x - glider
Camera - Nextvision Raptor (zoom 80x)
Communication - Hermes TX
Ground station - Hermes TX
3x - notebook

6x - Spare battery
1x - Сharging station
3x - Repair kit
1х - Tripod
3x - camera controller

GOR

Name

In box

COMPLETE SETUP

3500m

40km

2.5h

FLIGHT HEIGHT

TACTICAL RANGE

FLIGHT TIME

80x

Camera Zoom

30m/s

Speed

20mbps

Data transfer speed

technical specification

MASS
UAV empty mass - 6.2 kg
Payload mass - 1.5 kg
Battery mass - 3.6 kg
Maximum take-off weight - 11.3 kg

SPEED
Dump speed - 11.5 m/s
Cruise speed - 18 m/s
The maximum speed - 30 m/s
The rate of climb - 3.5 m/s

RANGE AND ALTITUDE
The range of working height - 1600 m
The maximum flight height - 3500 m
The total flight range - 130 km
Flight time ~ 2.5 hours
Working temperature -20 to +50 ○C

GEOMETRIC
Length - 1612 mm
Width - 160 mm
Height - 496 mm
Wing span - 2645 mm

ADVANTAGES

CATAPULT LAUNCH
BELLY LANDING

Fast and reliable launch from the catapult eliminates the human factor and guarantees a successful launch. Belly landing allows you to quickly land the plane and change your position.

1

CARBON FIBER
FRAME AND CLADDING

The carbon frame and carbon cladding work together as one power element. The bottom of the fuselage is additionally reinforced with Kevlar. This technique is used in aircraft construction so that in case of damage to the skin, the frame continues to hold the load.

2

3

PROTECTED AGAINST ANY SIGNAL INTERFERENCE

At the moment, the communication complex has been tested, including in hot spots. He showed his resistance to the means of electronic warfare.
The UAV uses two sets of single-sided modems with boosting up to 10 watts on each side.
NV433_TX + TL_BOOSTER + NV433_RX
NV868_TX + TL_BOOSTER + NV868_RX
Hermes_TX + VD_BOOSTER + Hermes RX
(video downlink)

Communication
module

The system consists of a Hermes Downlink high-speed data transmission channel, which is designed to transmit video and telemetry to the ground from the board via an encrypted control channel. As well as board control modems. Which can be used as a one-way channel or half duplex two-way. The modems are designed to be connected via Ethernet/UART on the side of the ground station or UART on the side of the aircraft.

AUTONOMOUS AND
SEMI-AUTONOMOUS MODE

Autonomous mode excludes the human factor
The pilot focuses on working with the camera and not the drone
If the communication or GPS is suppressed, the drone will follow the previously set route and return to the set landing place using the inertial navigation system

Semi-automatic mode
The pilot controls the plane
Automation will prevent the pilot from making a fatal mistake
Manual mode
Only for experienced pilots

Team training

We provide quality training for drone operators
Training consists of several stages theoretical and practical part
2 men are needed to manage the complex
